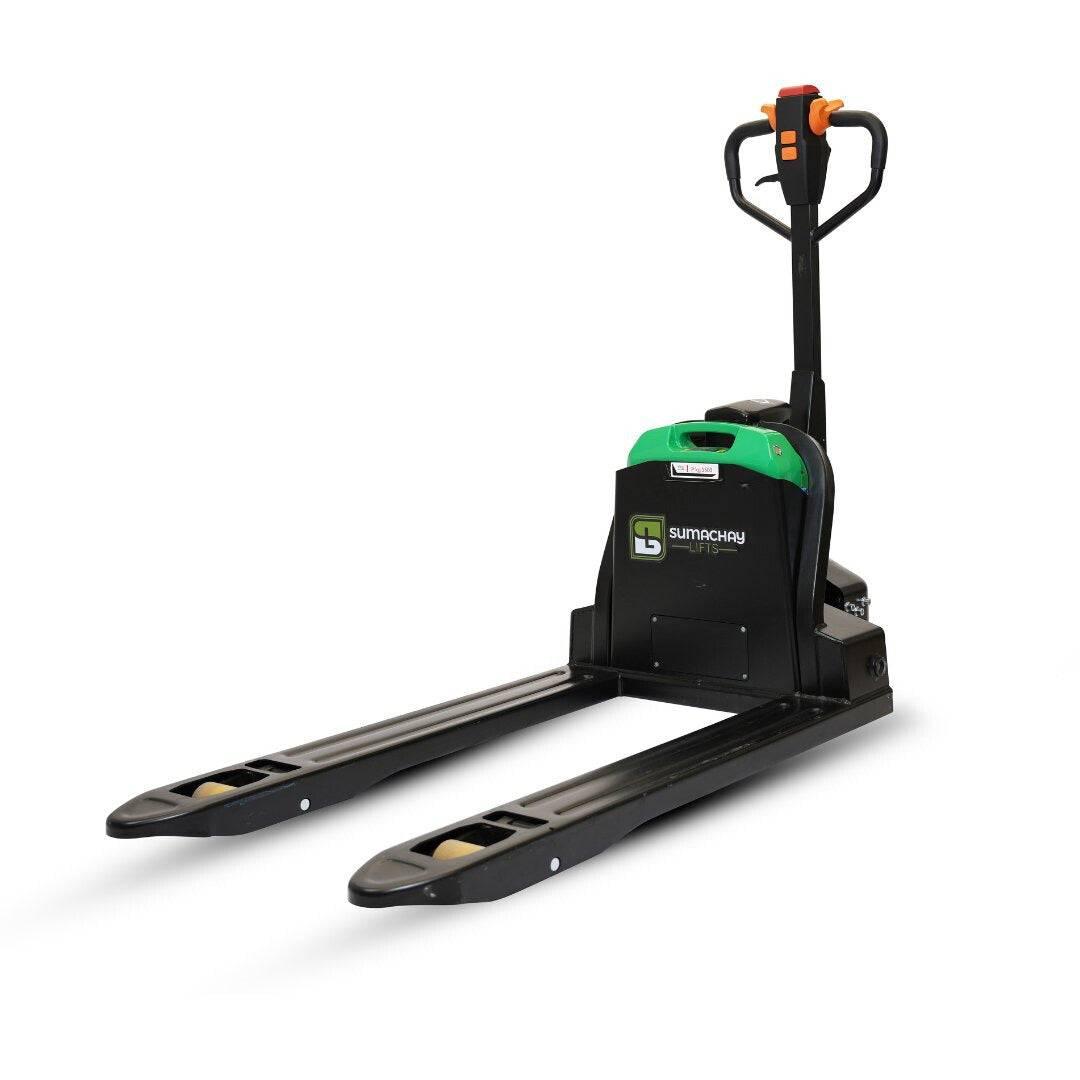

SESR15 Electric Walkie Pallet Jack - Lithium Ion 1.5 Ton Capacity
- SESR15 Electric Pallet Jack: Lifts up to 3300 lbs, with a choice of 20Ah or 40Ah lithium-ion batteries.
- Safety & Warranty: Comes with a 1-year warranty and automatic safety release braking system, CSA Certified.
- User-Friendly Design: Ergonomic controls, pinwheel capability, and polyurethane wheels for maneuverability.
- Quiet & Durable: Operates at ≤70 dB(A) with a sturdy build and 110V charger for convenient charging.
Introducing Sumachay's SESR15 Electric Pallet Jack - Engineered for Peak Performance
Maximize efficiency and power up your warehouse operations with Sumachay's SESR15 electric pallet jack. Assembled in Canada, this powerhouse boasts a hefty 3300 lb capacity and offers a choice of standard 20Ah, or long-range 40Ah lithium-ion batteries to suit your needs.
CSA Certified and backed by a solid 1-year warranty, the SESR15 ensures reliability and peace of mind. Its ergonomic controls and safety features, including an automatic safety release braking system, prioritize operator safety while enhancing productivity.
Key Features:
- 1-Year Warranty: backed by Sumachay Lifts
- High Load Capacity: Supports up to 3300 lbs, ideal for a range of industrial applications.
- Lithium Iron Phosphate Battery: Equipped with a 24V LiFePO4 battery, providing long-lasting and efficient power.
- Removable Battery for Flexible Charging
- User-Friendly Design: Features an ergonomic handle and controls for comfortable operation.
- Pinwheel Capability: Enhances maneuverability in tight spaces.
- Durable Construction: Made with high-quality steel and components for robustness and longevity.
- Polyurethane Wheels: Ensure smooth movement and stability on different surfaces.
- 110V Charger: Adds to the convenience and consistent power supply.
- Quiet Operation: Operates at a noise level of ≤70 dB(A) for a comfortable working environment.
- Tight Turning Radius for confined spaces and narrow aisles.
- Effortless Ramp Climbing: 5/10 Grade.

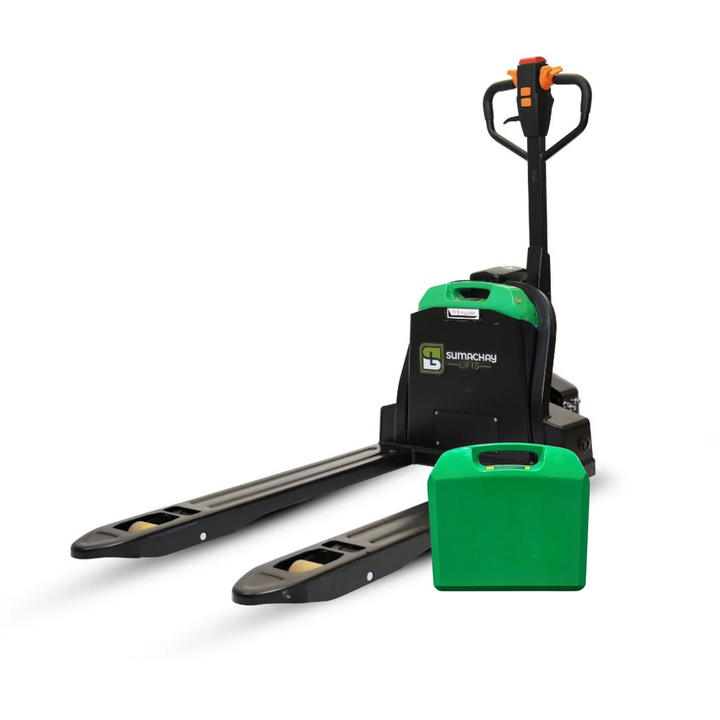

- Battery Options: 20Ah or 40Ah lithium-ion.
- CSA Certified for safety and quality assurance
Dominate confined spaces with ease, thanks to its maneuverability and polyurethane wheels for smooth operation. Revolutionize your warehouse workflow with Sumachay's SESR15 electric pallet jack - the ultimate combination of power, reliability, and convenience.
Technical Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | SESR15 | |
| Drive type | Electric | |
| Manner of operation | Walkie | |
| Load Capacity | LBS | 3300 |
| Load Centre | Inch | 23.6 |
| Distance between fork backrest and front wheel | Inch | 39.92 |
| Wheel Base | Inch | 51.69 |
| Tire Material | PU | |
| Driving wheel size | Φ×w (Inch) | Φ8.27×2.76 |
| Bearing wheel size | Φ×w (Inch) | Φ3.15×3.35 |
| Qty of wheels, Front/Rear (x = driving wheel) | 1x/2 | |
| Tread | b11 (Inch) | 21.06 |
| Lifting Height | h3 (Inch) | 7.87 |
| Handle height in the operation position | h14 (Inch) | 29.13/45.67 |
| Lowered fork height | h13 (Inch) | 3.35 |
| Overall Length | l1 (Inch) | 65.86 |
| Body Length | l2 (Inch) | 17.83 |
| Overall Width | b1/b2 (Inch) | 26.97 |
| Fork Size | s/e/l (Inch) | 1.97/5.91/48.03 |
| Fork Width | b5 (Inch) | 26.97 |
| Min. Ground Clearance | m2 (Inch) | 1.38 |
| Aisle width for pallets 39.37*47.24 crossways | Ast (Inch) | 73.78 |
| Aisle width for pallets 31.5*47.24 lengthways | Ast (Inch) | 75.75 |
| Turning Radius | Wa (Inch) | 57.8 |
| Driving Speed, load/unload | (km/h) | 4.2/4.5 |
| Maximum gradeability load/unload | (%) | 5/10 |
| Brake Type | Electromagnetic brake | |
| Drive Motor | (kW) | 0.75 |
| Lift Motor | (kW) | 0.8 |
| Lithium LiFePO4 Battery voltage & rate capacity | (V/Ah) | 24/20 or 24/40 |
| Battery Weight（±5%） | LBS | 22.4 |
| Type of drive control | DC | |
| Noise level | (dB(A)) | ≤70 |
| Service Weight（with battery） | LBS | 370 |
Warranty Information for Sumachay Pallet Lifts
Your SESR15 Electric Pallet Jack comes with a 12-month warranty that begins on the date of purchase, as indicated on your invoice. This warranty covers comprehensive repairs in the event of a legitimate fault or breakdown. However, it does not extend to issues arising from normal wear and tear, accidents, negligence, or improper use.
Please note that this warranty is voided if the unit is used in environments where it is submerged in water or exposed to fluids or chemicals.
To ensure the longevity and reliability of your electric pallet lift, we strongly recommend adhering to routine maintenance. This includes regular cleaning, proper lubrication, and appropriate storage.
If you have any questions about your warranty or require service, please contact our customer support team for further assistance.
| Size |
20Ah Standard Battery, 40Ah Long Range Battery |
|---|
